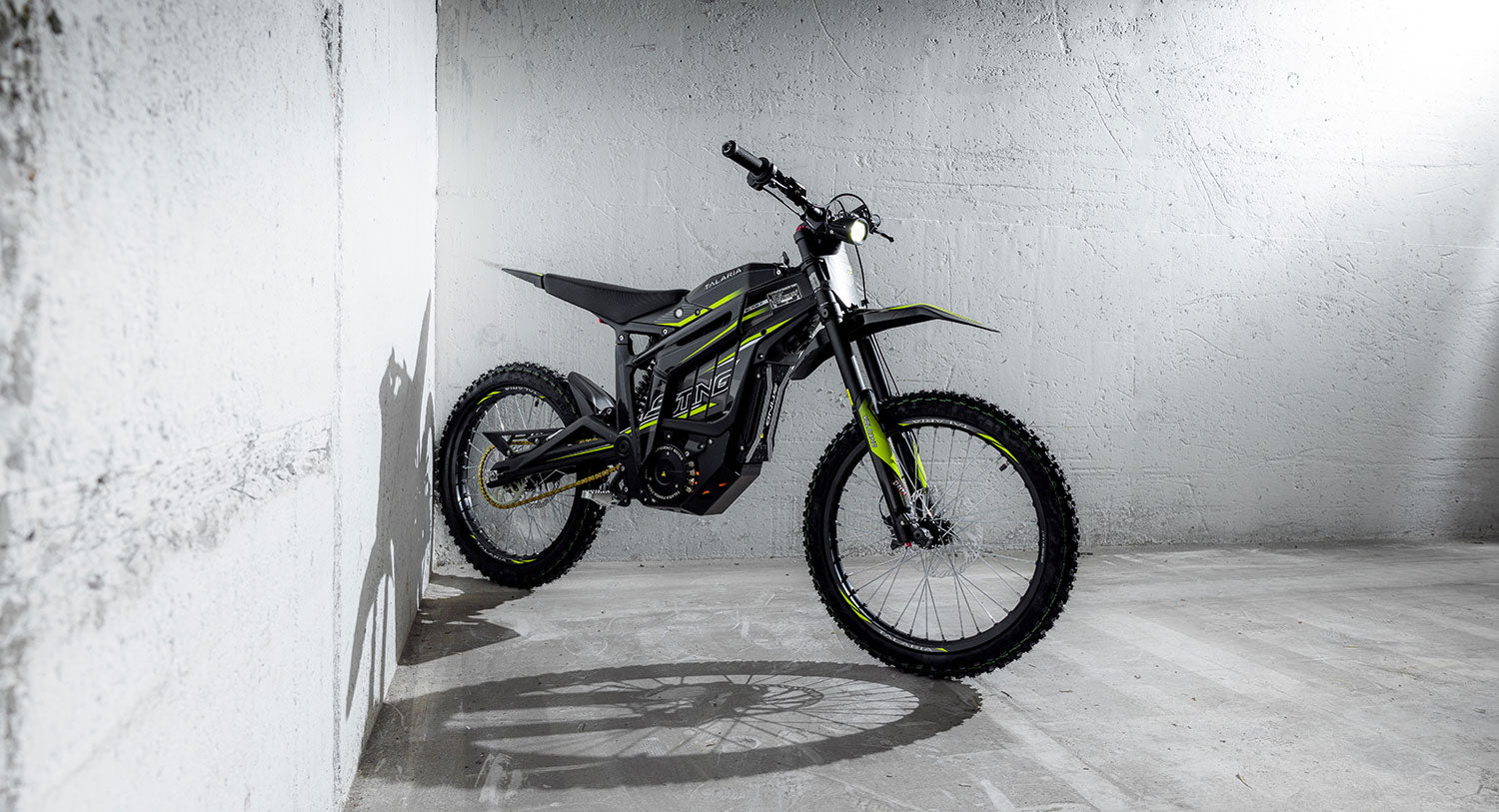

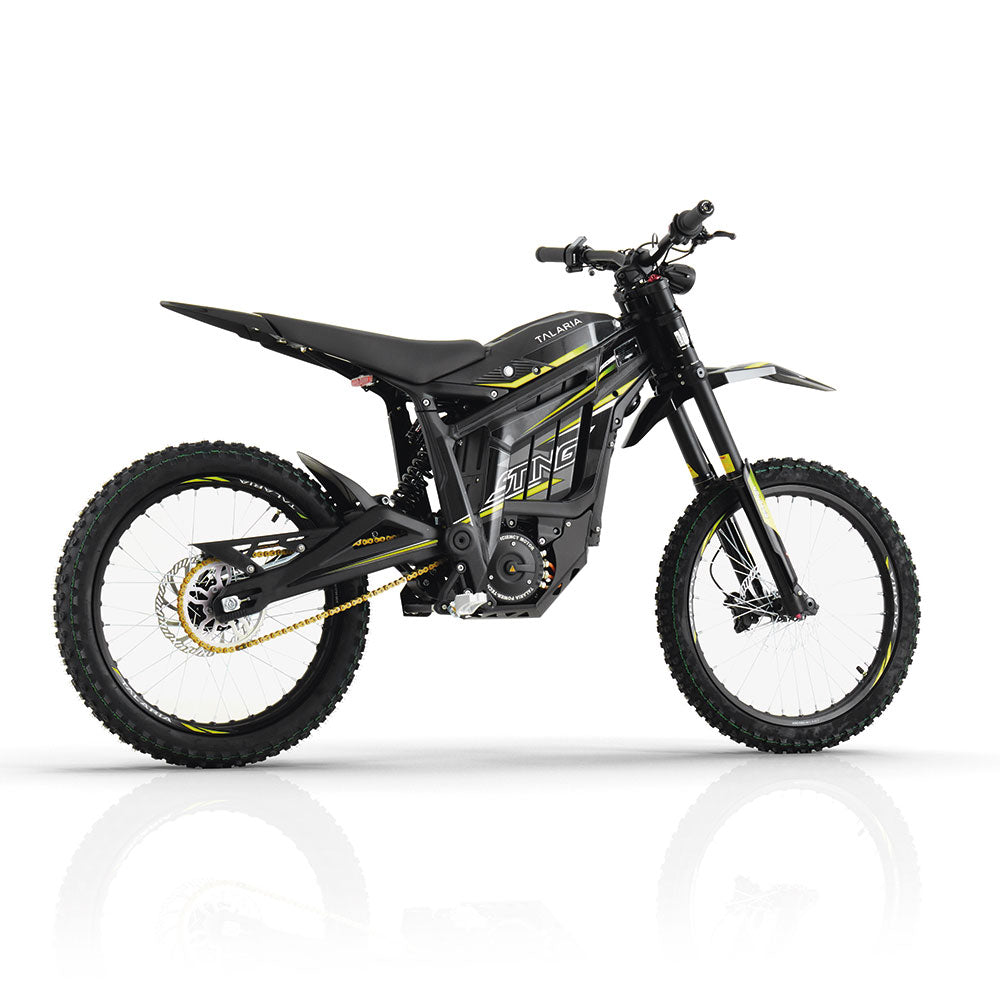

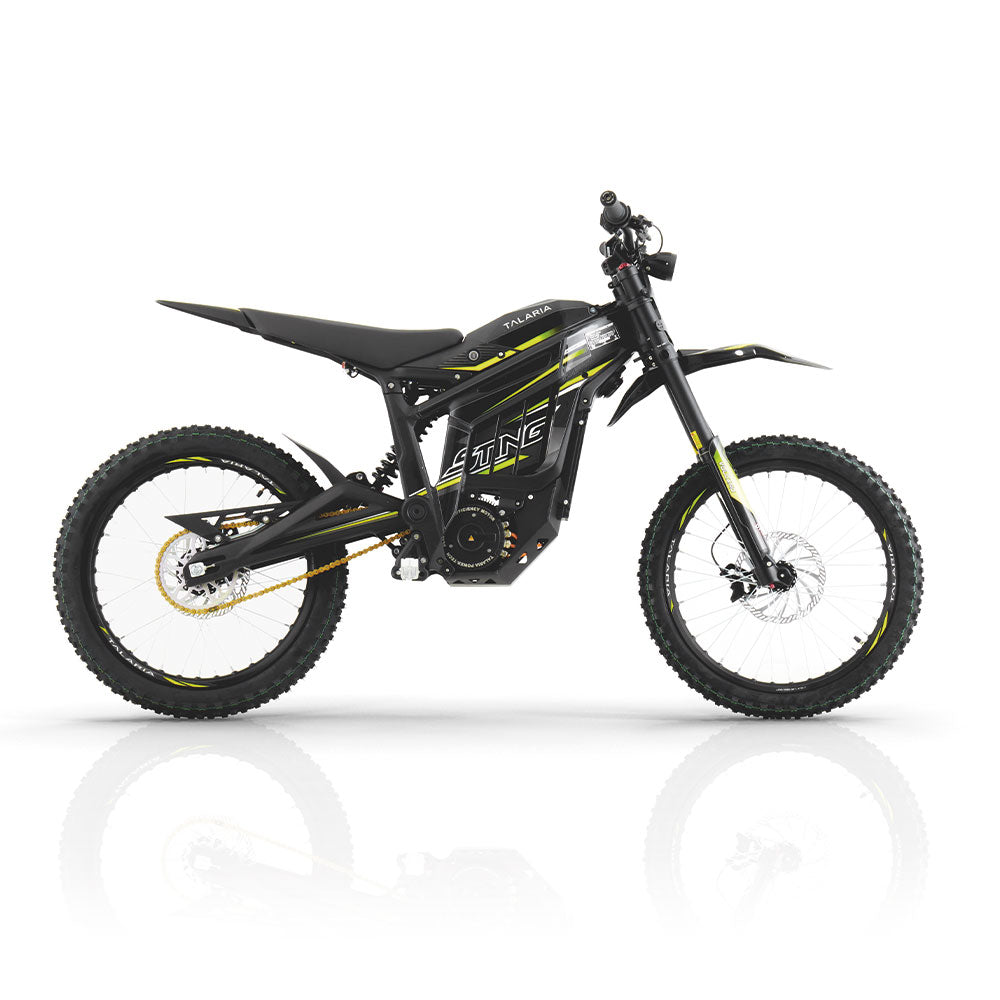

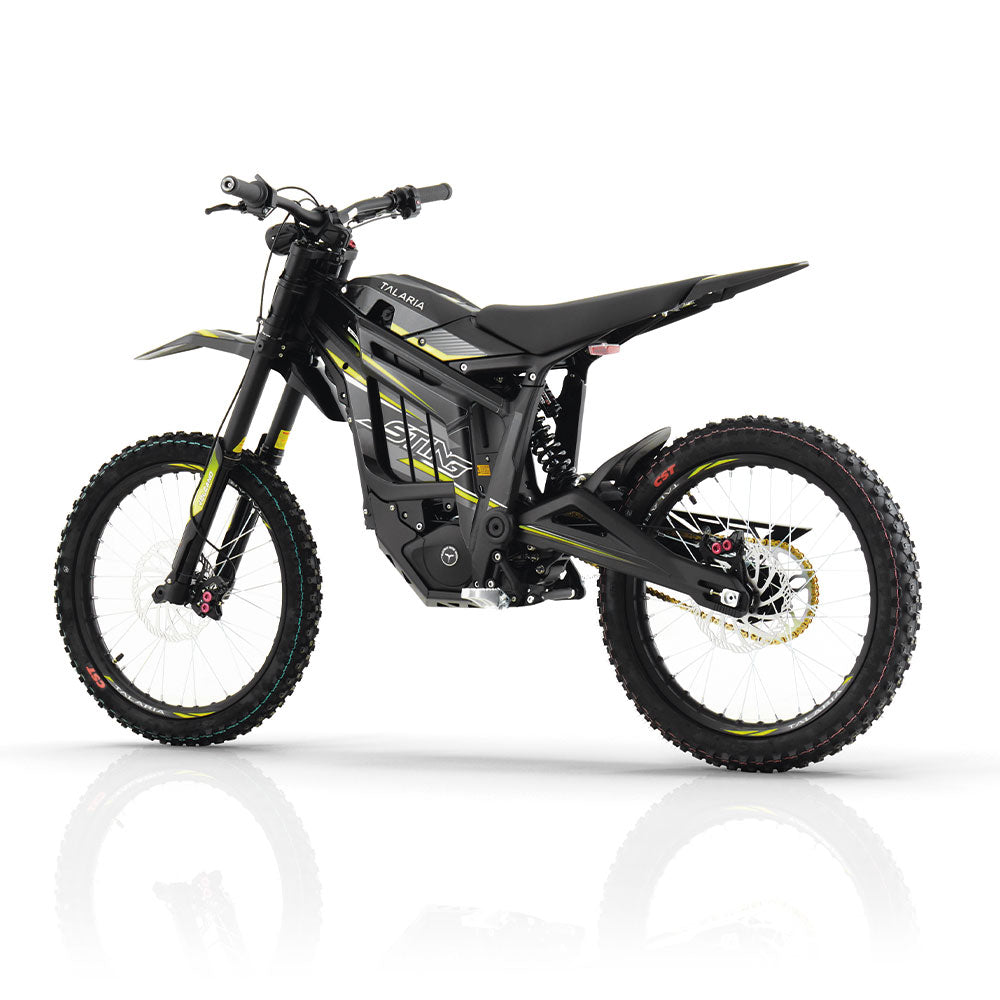

Talaria Sting OFF/R
The Talaria Sting is is a lightweight and compact bike frame powered by an impressive 60V 38Ah lithium-ion battery which can be swapped and/or removed in seconds, allowing the possibility of a limitless range with a simple battery swap. Using electric automobile grade LG 21700 cells combined with state-of-the-art programmed BMS, the torque and efficiency make this bike an outstanding performer.
Delivery: Free pick up from our Cheshire showroom or national delivery to UK Mainland for £49.95

Sting
Forged for adventure and built for life. Using 6061 aluminium alloy with a superior forging process of 6000 tons of pressure, the frame is qualified to assure you a safe and fun riding experience through even the toughest terrains.
Electric automobile grade LG 21700 cells combined with state-of-the-art programmed BMS, the torque and efficiency make Talaria's Sting bike an outstanding performer


Lightweight Frame
Talaria Sting is a lightweight and compact bike frame. Using 6061 aluminium alloy with a superior forging process of 6000 tons of pressure
Speed & distance
With an average range of up to 63 miles and a top speed of 55mph the Sting provides power and endurance
Peak power
5000W. Using electric automobile grade LG 21700 cells combined with state-of-the-art programmed BMS, the torque and efficiency make this bike an outstanding performer.
Specifications
Using high-quality hardware, superb layout and smart programming allows for transient current impact resistance, ultra-strong anti-interference, high-precision EABS voltage, discharge current control, error inspection and correction. This guarantees the rider a powerful, exciting and safe riding experience.
47
MPH TOP SPEED
63
MILES RANGE*
Motor
Rated Voltage: 60v (DC)
Rated Power / Peak Power: 3700W @ 2100rpm
Shaft Output Torque: 29.5nm
Transmission: Gearbox + Chain
Rated Torque / Peak Torque: 8.5nm / 31.8nm
Peak Efficiency: 96.6%
Type: PMSM
Mounting Position: Centre Frame
Weight: 7kg
External Diameter: 180mm
Axial Length: 130mm
Cooling Method: Air Cooled
Primary Drive: Chain
Controller Type: FOC
Battery
Max Range: *63 Miles
Battery: 60v 38.4A Lithium LG Cells
Speedometer: TFT Digital
Battery Life Time: 800 Cycles
Charger: 10A 60V
Charging Time: **4 Hours
* Range is dependant on speed/weight/braking and other factors
** Charging time is from 0-100%
Chassis
Max Load: 100kg
Net Weight: 58kg
Forks: Manitou (Optional) / RST - DNM
Wheel Type: Spoke Wheels 19x1.6

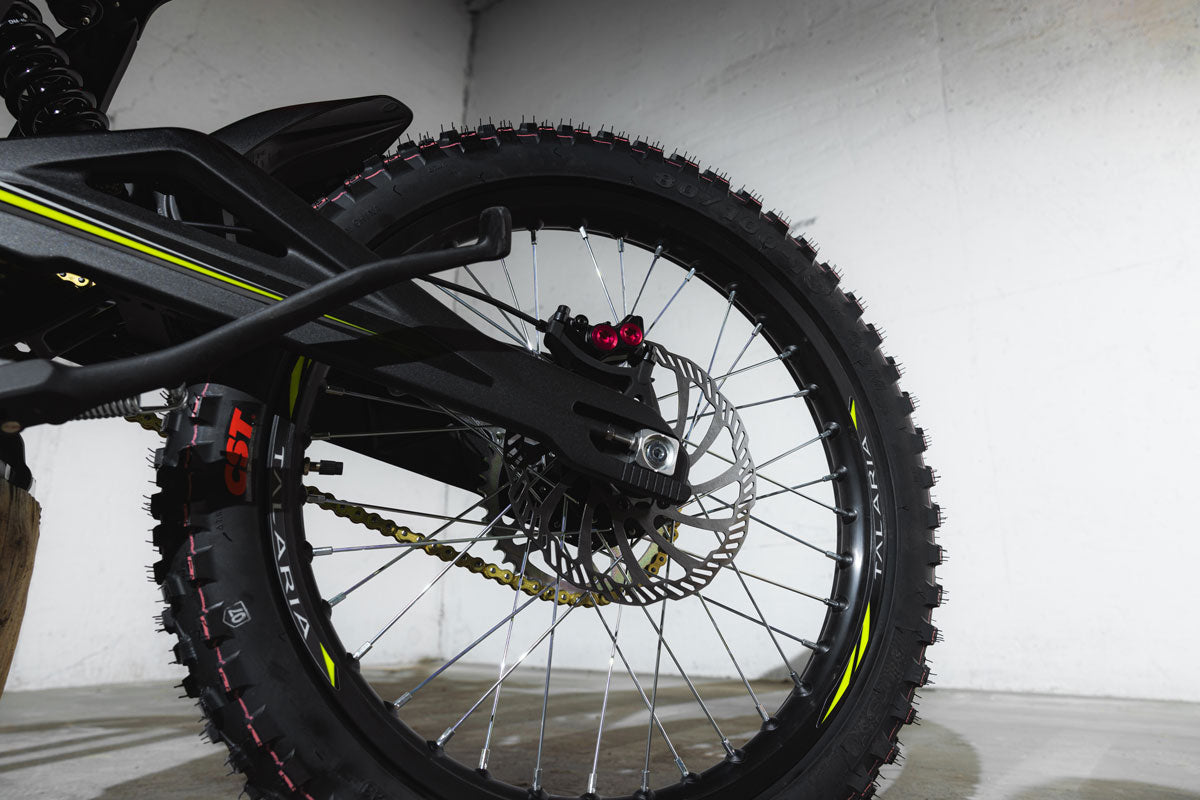

Brakes: 4 Piston Caliper Hydraulic Brakes
Dimensions (LxWxH)L 1870mm x 780mm x 1040mm
Front Tyre Size: 70/100-19
Rear Tyre Size: 80/100-19
Chassis Weight: 9.5kg
Chassis Surface: Anodizing Paint Treated
Headlight: LED
Tyres: CST
Brake Discs: 203mm
Minimum Ground Clearance: 270mm
Rated Voltage: 60v (DC)
Rated Power / Peak Power: 3700W @ 2100rpm
Shaft Output Torque: 29.5nm
Transmission: Gearbox + Chain
Rated Torque / Peak Torque: 8.5nm / 31.8nm
Peak Efficiency: 96.6%
Type: PMSM
Mounting Position: Centre Frame
Weight: 7kg
External Diameter: 180mm
Axial Length: 130mm
Cooling Method: Air Cooled
Primary Drive: Chain
Controller Type: FOC
Max Range: *63 Miles
Battery: 60v 38.4A Lithium LG Cells
Speedometer: TFT Digital
Battery Life Time: 800 Cycles
Charger: 10A 60V
Charging Time: **4 Hours
* Range is dependant on speed/weight/braking and other factors
** Charging time is from 0-100%
Max Load: 100kg
Net Weight: 58kg
Forks: Manitou (Optional) / RST - DNM
Wheel Type: Spoke Wheels 19x1.6
Brakes: 4 Piston Caliper Hydraulic Brakes
Dimensions (LxWxH)L 1870mm x 780mm x 1040mm
Front Tyre Size: 70/100-19
Rear Tyre Size: 80/100-19
Chassis Weight: 9.5kg
Chassis Surface: Anodizing Paint Treated
Headlight: LED
Tyres: CST
Brake Discs: 203mm
Minimum Ground Clearance: 270mm
*Range is dependant on varying riding conditions and habits such as speed, weight and braking

The Talaria Sting... built for the ride
