Talaria Sting ROAD LEGAL
The Talaria Sting is is a lightweight and compact bike frame powered by an impressive 60V 38Ah lithium-ion battery which can be swapped and/or removed in seconds, allowing the possibility of a limitless range with a simple battery swap. Using electric automobile grade LG 21700 cells combined with state-of-the-art programmed BMS, the torque and efficiency make this bike an outstanding performer. 30mph restricted top speed and 3700w top power for powerful road legal use. CBT Licence required to ride this bike on the road.
Delivery: Free pick up from our Cheshire showroom or national delivery to UK Mainland for £49.95

Sting Road Legal
Forged for adventure and built for life. Using 6061 aluminium alloy with a superior forging process of 6000 tons of pressure, the frame is qualified to assure you a safe and fun riding experience through even the toughest terrains.
Electric automobile grade LG 21700 cells combined with state-of-the-art programmed BMS, the torque and efficiency make Talaria's Sting bike an outstanding performer


Lightweight Frame
Talaria Sting is a lightweight and compact bike frame. Using 6061 aluminium alloy with a superior forging process of 6000 tons of pressure
Speed & distance
With an average range of up to 63 miles and a top speed of 55mph the Sting provides power and endurance
Peak power
5000W. Using electric automobile grade LG 21700 cells combined with state-of-the-art programmed BMS, the torque and efficiency make this bike an outstanding performer.
Specifications
Using high-quality hardware, superb layout and smart programming allows for transient current impact resistance, ultra-strong anti-interference, high-precision EABS voltage, discharge current control, error inspection and correction. This guarantees the rider a powerful, exciting and safe riding experience.
30
MPH TOP SPEED (RESTRICTED)
50
MILES RANGE*

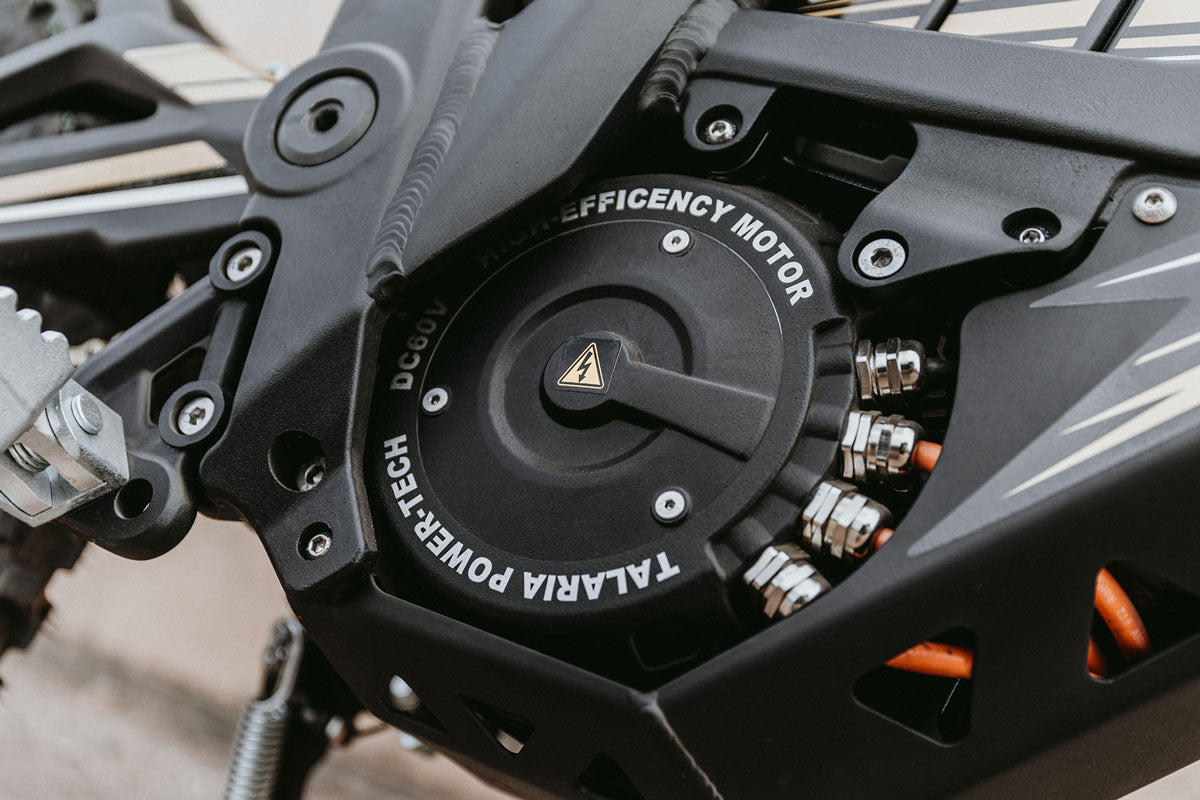

Motor
Top Speed Restricted: 30mph
Licence required: CBT
Rated Voltage: 60v (DC)
Rated Power / Peak Power: 3700W @ 2100rpm
Shaft Output Torque: 29.5nm
Transmission: Gearbox + Chain
Rated Torque / Peak Torque: 8.5nm / 31.8nm
Peak Efficiency: 96.6%
Type: PMSM
Mounting Position: Centre Frame
Weight: 7kg
External Diameter: 180mm
Axial Length: 130mm
Cooling Method: Air Cooled

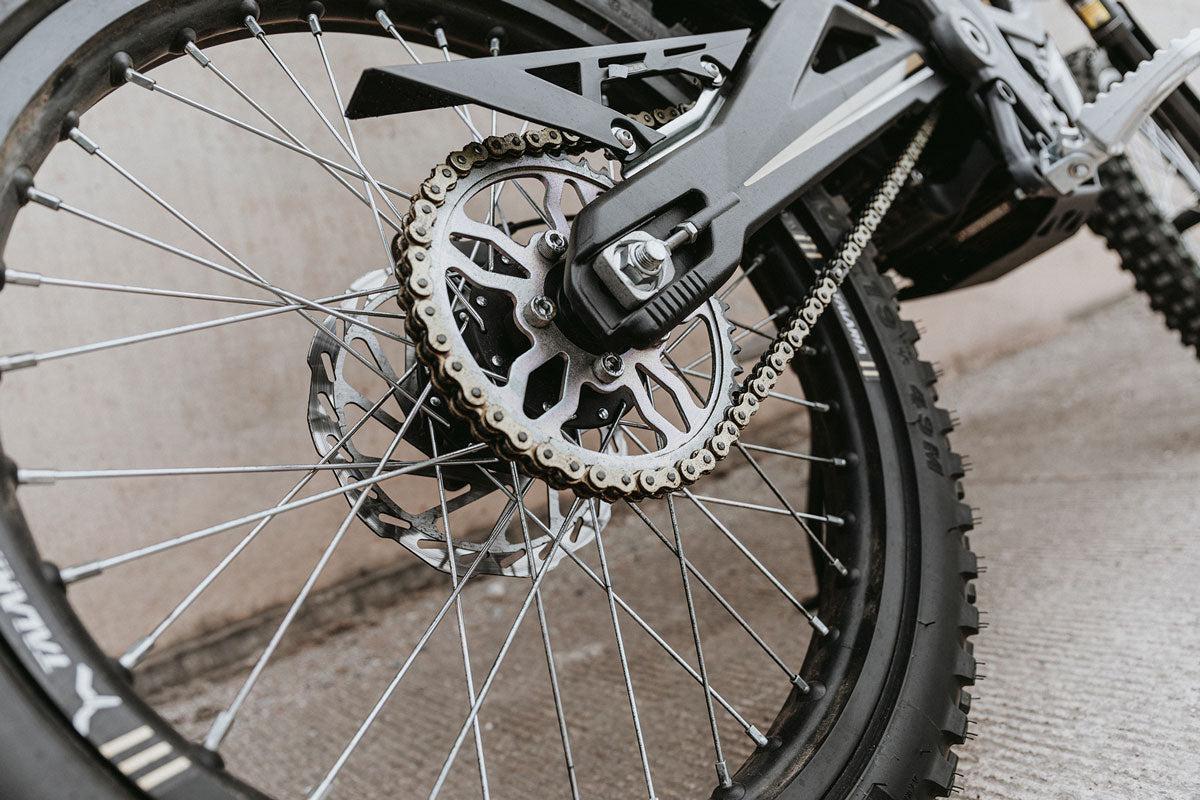

Primary Drive: Chain
Controller Type: FOC
Battery
Max Range: *50 Miles
Battery: 60v 38.4A Lithium LG Cells
Speedometer: TFT Digital
Battery Life Time: 800 Cycles
Charger: 10A 60V
Charging Time: **4 Hours
* Range is dependant on speed/weight/braking and other factors
** Charging time is from 0-100%
Chassis
Max Load: 100kg
Net Weight: 58kg
Forks: Manitou (Optional) / RST - DNM
Wheel Type: Spoke Wheels 19x1.6
Brakes: 4 Piston Caliper Hydraulic Brakes
Dimensions (LxWxH)L 1870mm x 780mm x 1040mm
Front Tyre Size: 70/100-19
Rear Tyre Size: 80/100-19
Chassis Weight: 9.5kg
Chassis Surface: Anodizing Paint Treated
Headlight: LED
Tyres: CST
Brake Discs: 203mm
Minimum Ground Clearance: 270mm
Top Speed Restricted: 30mph
Licence required: CBT
Rated Voltage: 60v (DC)
Rated Power / Peak Power: 3700W @ 2100rpm
Shaft Output Torque: 29.5nm
Transmission: Gearbox + Chain
Rated Torque / Peak Torque: 8.5nm / 31.8nm
Peak Efficiency: 96.6%
Type: PMSM
Mounting Position: Centre Frame
Weight: 7kg
External Diameter: 180mm
Axial Length: 130mm
Cooling Method: Air Cooled
Primary Drive: Chain
Controller Type: FOC
Max Range: *50 Miles
Battery: 60v 38.4A Lithium LG Cells
Speedometer: TFT Digital
Battery Life Time: 800 Cycles
Charger: 10A 60V
Charging Time: **4 Hours
* Range is dependant on speed/weight/braking and other factors
** Charging time is from 0-100%
Max Load: 100kg
Net Weight: 58kg
Forks: Manitou (Optional) / RST - DNM
Wheel Type: Spoke Wheels 19x1.6
Brakes: 4 Piston Caliper Hydraulic Brakes
Dimensions (LxWxH)L 1870mm x 780mm x 1040mm
Front Tyre Size: 70/100-19
Rear Tyre Size: 80/100-19
Chassis Weight: 9.5kg
Chassis Surface: Anodizing Paint Treated
Headlight: LED
Tyres: CST
Brake Discs: 203mm
Minimum Ground Clearance: 270mm
*Range is dependant on varying riding conditions and habits such as speed, weight and braking

The Talaria Sting... built for the ride
